Parallel Nippers Super-fine Normal Blade NZ-12
ENGINEER Brand:
ENGINEER
Safety Verification

Parallel Nippers Super-fine Normal Blade NZ-12

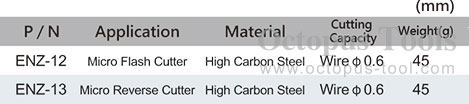

Product No
ENZ-12
Country of Origin
Japan
International Barcode
4989833030988
Packing
(pcs) G.W. CU'FT
5 0.25KG 0.063'
inquiry
description

Parallel Nippers Super-fine Normal Blade NZ-12

◆ Full flush and super-fine cutting edge
◆ Ideal fo cutting an IC lead of a narrow-pitch QFP or SOP with slender shears (0.3mm+0.3mm width at top)
◆ Ergonomic elastomer handle for comfort gripping
◆ Light weight, 45g only
◆ Enables you to make flush cut of a lead easily and prevents stripping or solder crack on the circuit board
◆ Unique structure of parallel handle for you to hold shears horizontally without raising up your elbow

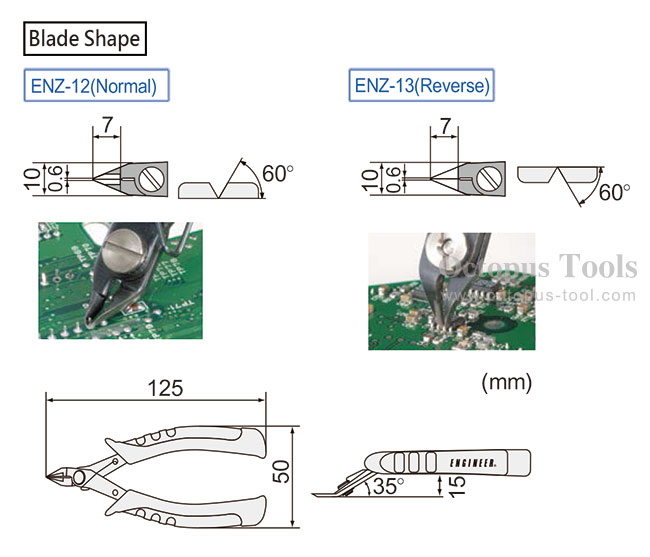

◆ Overall Length: 125mm
◆ Grip Width: 50mm
◆ Jaw Width: 10mm
◆ Blade Length: 7mm
◆ Material: S55C
◆ Cutting Capacity: copper wire dia. 0.6mm






Parallel Nippers Super-fine Normal Blade NZ-12
