TES Brand:
TES
Safety Verification

DC/AC Clamp Meter TES-3092

Product No
575.3092
Country of Origin
Taiwan
International Barcode
4716044019576
Packing
(sets) G.W. CU'FT
- 0.387KG -
inquiry
description

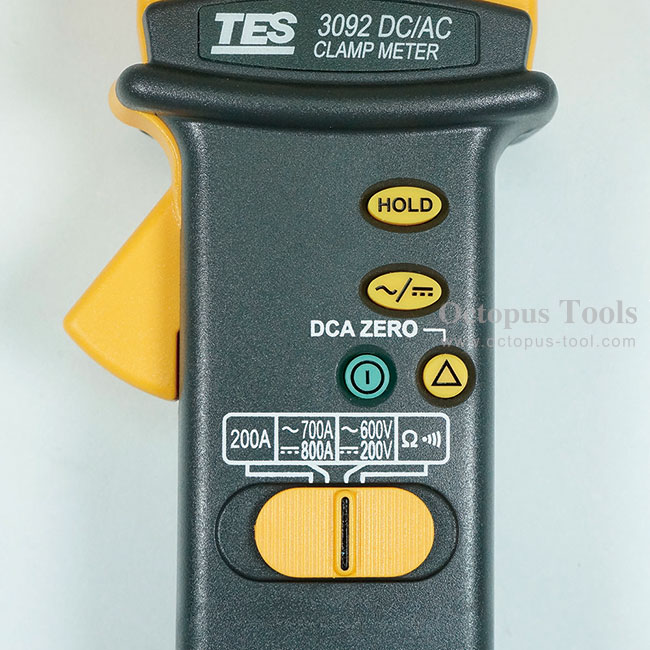

DC/AC Clamp Meter TES-3092

◆ Compact Size.
◆ AC/DC Current Measurement (AC 700A / DC 800A).
◆ 600 V AC & 200V DC, Ohm / Continuity Beeper.
◆ One Touch DCA Zero.
◆ DC Current -
Range: 200A-800A, Accuracy: ±( 1.5%rdg + 2dgts), Overload protection: 850Vrms
◆ AC Current -
Range: 200A-700A, Accuracy: ±( 2%rdg + 4dgts), Frequency Range: 50 ~ 400Hz, Overload protection: 850Vrms
◆ DC Voltage -
Range: 200V, Resolution: 0.1V, Accuracy: ±(1%rdg + 1dgts), Input Impedance: 1MΩ, Overload protection: 600Vrms
◆ AC Voltage -
Range: 600V, Resolution: 1V, Accuracy: ±(1.5%rdg +4dgts), Frequency Range: 50 ~ 400Hz, Input Impedance: 1MΩ, Overload protection: 600Vrms
◆ Resistance -
Range: 2KΩ, Resolution: 1Ω, Accuracy: ±( 1%rdg+ 2dgts), Overload protection: 600Vrms
◆ Continuity beeper: Sound Level ≦30Ω
◆ 3-1/2 digit liquid crystal display (LCD) maximum reading 1999
◆ Over Range and Low Battery Indication
◆ Power: 9V battery*1 pcs
◆ Operating Temperature and Humidity: 0℃ to 50℃ (32℉ to 122℉) below 80%RH
◆ Dimensions: 192(L) x 64(W) x 31(H)mm
◆ Weight: 240g

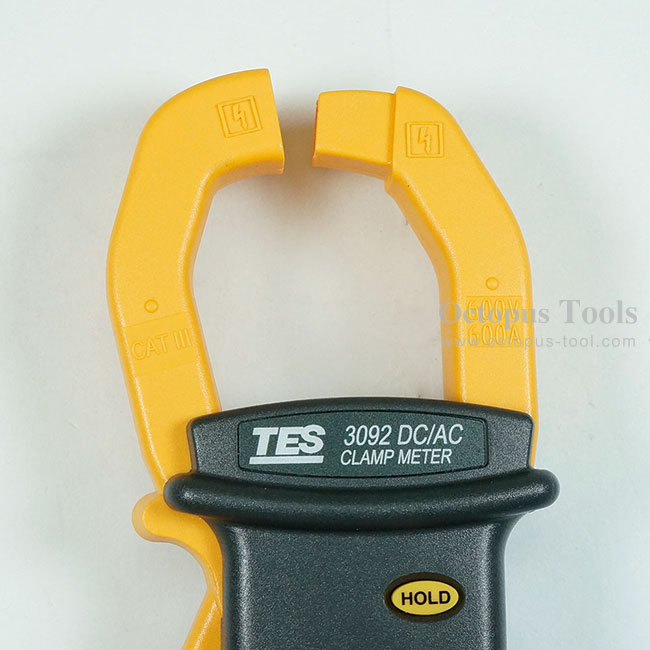

◆ Jaw Opening Diameter: Cables 27 mm

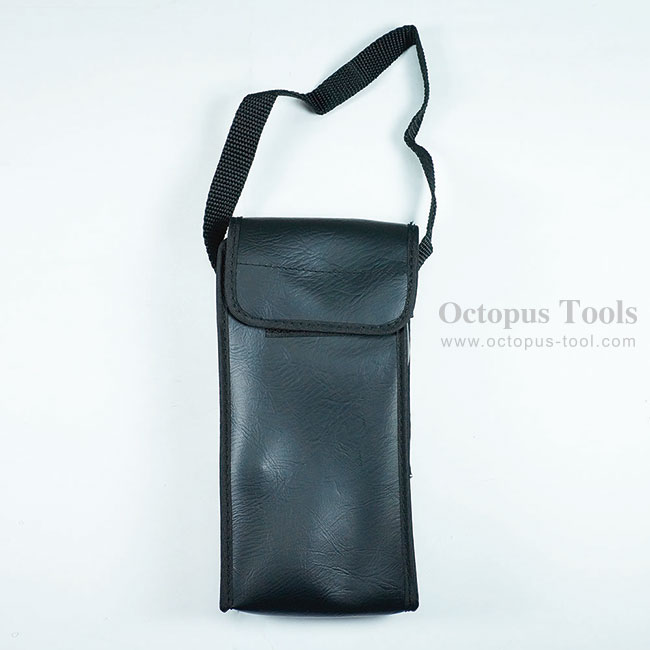

◆ Accessories: Carrying case, Battery, Instruction manual and Test leads












DC/AC Clamp Meter TES-3092
