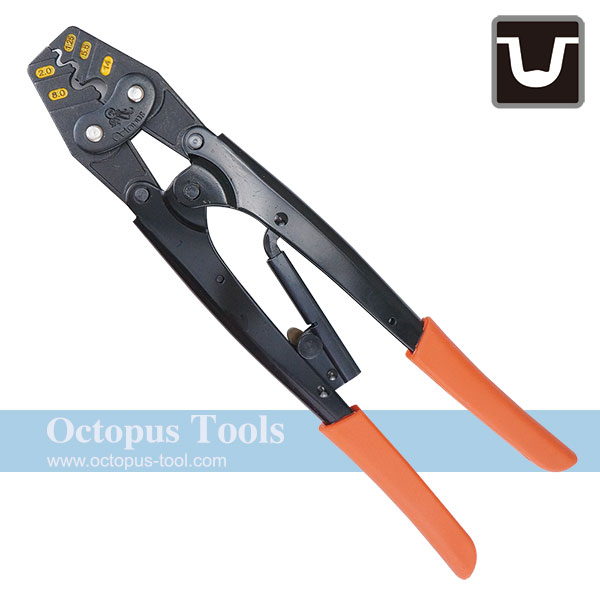

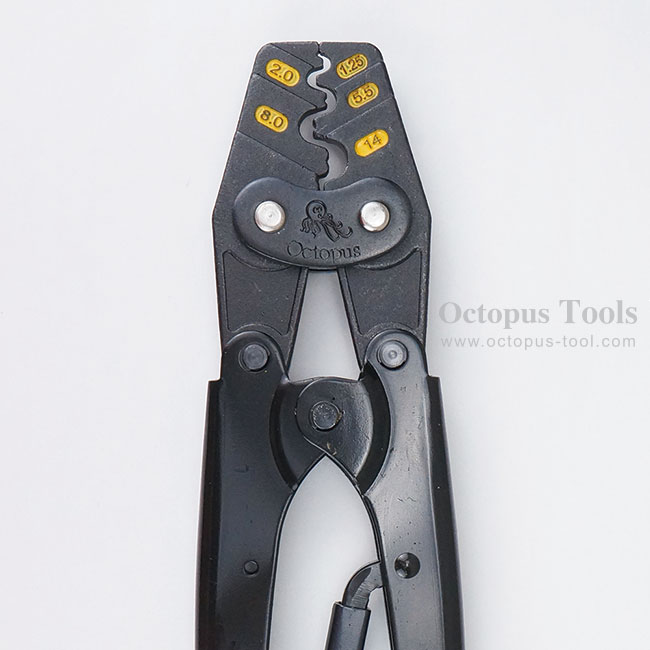

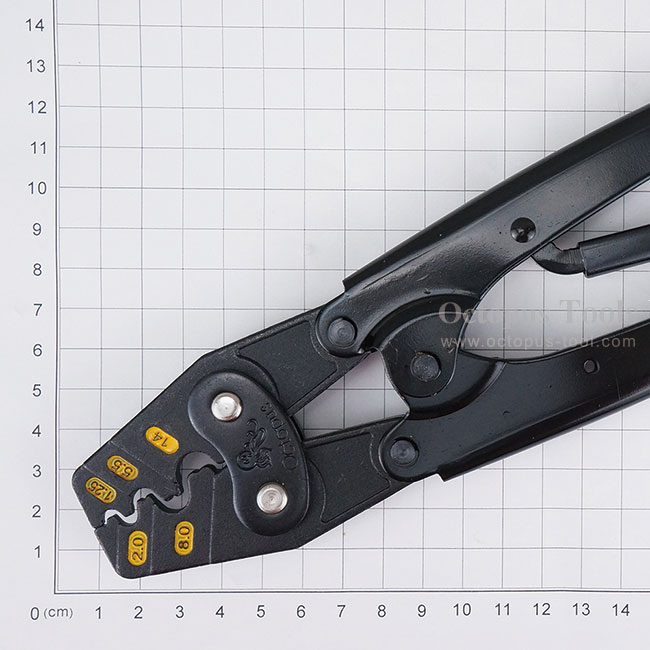

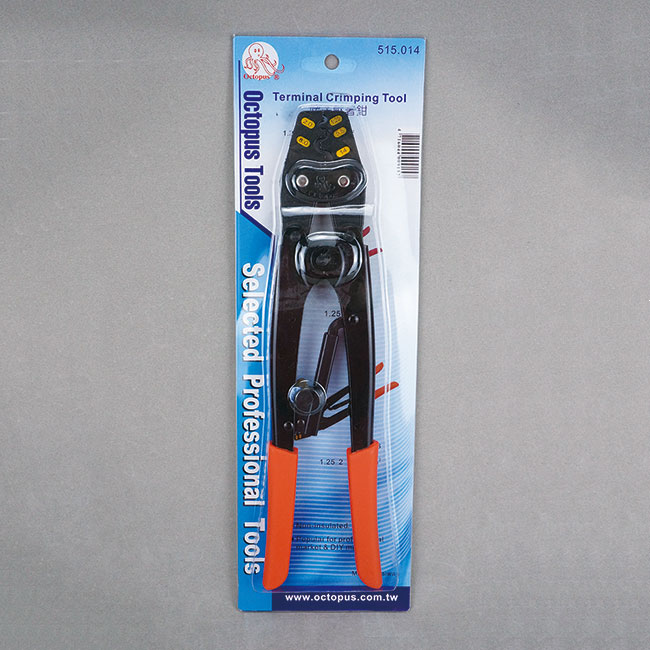

Octopus Ratchet Terminal Crimping Tool 1.25-14m㎡

Multi-Functional Wire Stripper PAW-01 Engineer

Material of Body: High Carbon Steel
Material of Grip: Alloy Steel and ABS elastomer
Stripping Capacity: 0.05 - 8m㎡
Cutting Capacity: 0.05 - 6m㎡
Crimping Capacity: AWG16-10 for bare terminals and open-barrel terminals
Length: 210mm
Weight: 359g

◆ Multi-functional wire stripper with stripping, cutting, and crimping functions 3-in-1.
◆ Patented wire stripper for ultra fine wire, bold line, speaker cable, flat cable
◆ Easy to use by turning the adjustment knob in the minus direction you can peel off the ultra-fine wire.
◆ Easy to set the length of the stripped part with strip gauge.
◆ With cutting and crimping functions.

[Specifications]:

Overall Length: 225mm
Material: Carbon Steel
Handle Material: TPR
Screw Head Size: Dia. 3~12mm
Removable Screws: Dome (Truss) Head, Round and Pan Head.
Cutting Capacity: Flat Cable dia. 2.6mm x 3 cores / Hard Wire dia. 3.2mm / Copper Wire dia. 4mm / Stainless Wire dia. 2mm / Stranded Wire 8m㎡
Crimping Capacity: Bare Terminals AWG16~12 (1.25~3.5m㎡)
Hardness: HRC 60±2
Weight: 350g

[Features]:

◆ Designed especially for electrician a multi-functional pliers with unique screw extractor.
◆ Eccentric high leverage structure, powerful in cutting and gripping.
◆ 21mm long blade and the specially-designed eccentric structure offer 30% more cutting power compared to conventional pliers.
◆ 2-way non-slip gripping jaw. Vertical serrations grip a screw head securely, while horizontal serrations hold a tie band and a thin plate securely.
◆ The unique T-shaped handle helps prevent the handle sleeve from twisting or turning round and has the feature of light-weight.
◆ Strap hole in the end of the handle prevents the pliers from falling.

Digital Multimeter YF-3502T

◆ Max. display: 1999, 3 1/2 digits
◆ Overload and low battery display
◆ hFE: Yes
◆ Diode test: Yes
◆ AC Voltage: 200mV / 2V / 20V / 200V / 750V
◆ DC Voltage: 200mV / 2V / 20V / 200V / 1000V
◆ DC Current: 200μA / 2mA / 20mA / 200mA / 20A
◆ AC Current: 200μA / 2mA / 20mA / 200mA / 20A
◆ Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ
◆ Temperature: 40℃~800℃(-40℉~1382℉)
◆ Dimensions: 143x74x38mm
◆ Test lead is included.
