Octopus Brand:
Octopus

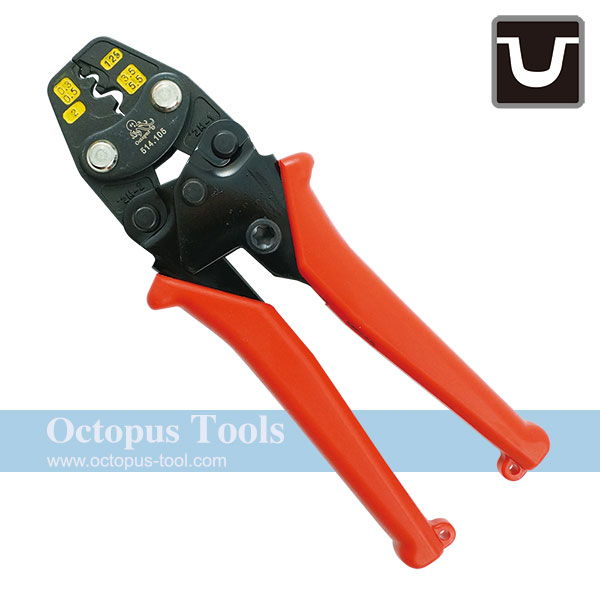

Octopus Ratchet Terminal Crimping Tool 0.3-5.5m㎡

Product No
514.105
Country of Origin
Taiwan
International Barcode
4716044046077
Packing
(pcs) G.W. CU'FT
6/72 19.512KG -
inquiry
description

Octopus Ratchet Terminal Crimping Tool 0.3-5.5m㎡

[Specifications]:

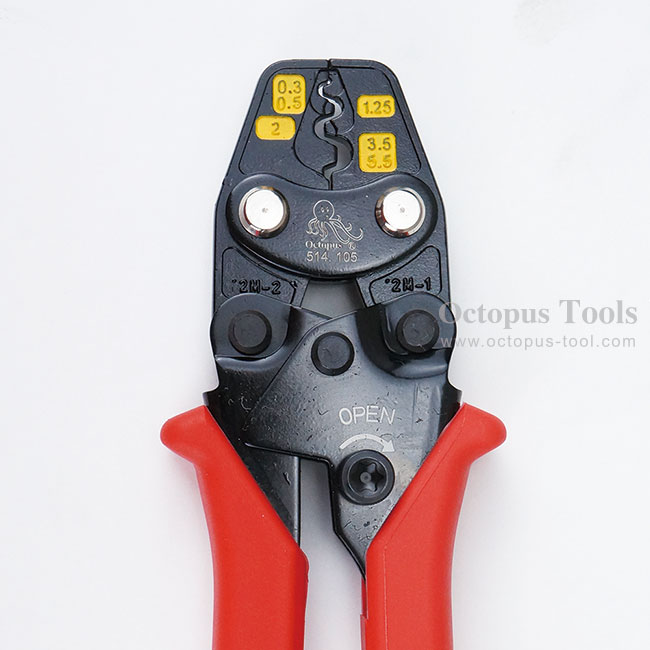

Crimping size (m㎡): 0.3, 0.5, 1.25, 2, 3.5, 5.5

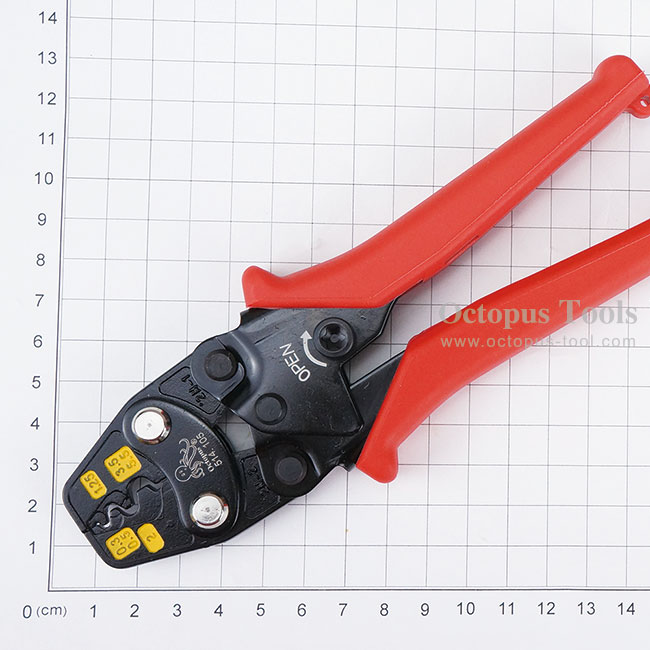

Length: 175mm
Weight: 264g

[Features]:

◆ With this terminal crimping tool, you can crimp easily and cause no harm to the terminals.
◆ Ratchet mechanism ensures great crimping quality.
◆ This high leverage crimping tool features a fixed device and inside precision grinding.
◆ By turning the screw on the crimping tool clockwise to release the jaw, the terminal won't be harmed.








Octopus Ratchet Terminal Crimping Tool 0.3-5.5m㎡
