ENGINEER Brand:
ENGINEER

Ceramic Alignment Driver, Long Shaft, Philips #0

Product No
EDA-78
Country of Origin
Japan
International Barcode
4989833010782
Packing
(pcs) G.W. CU'FT
10 - -
inquiry
description

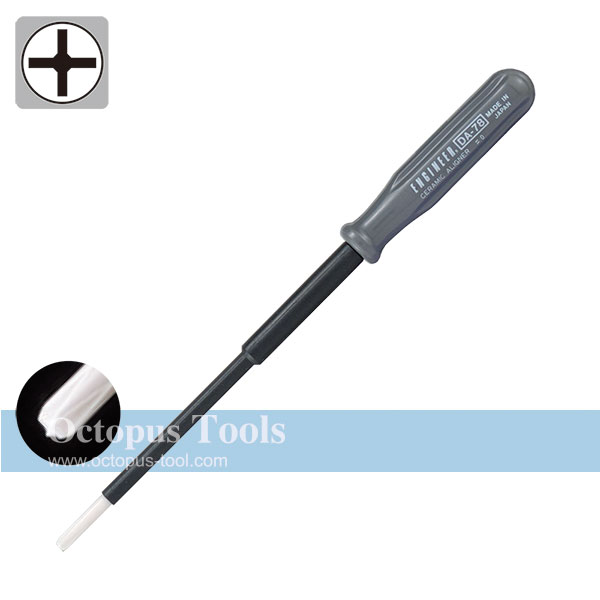

Ceramic Alignment Driver, Long Shaft, Philips #0

◆ Tip is made of durable zirconia ceramic.
◆ Long shaft helps you access hard-to-reach area
◆ Tip Size: Philips Φ3 (#0)
◆ Length of the Bit: 15 mm
◆ Total Length: 146 mm
◆ Weight: 7 g








Ceramic Alignment Driver, Long Shaft, Philips #0
