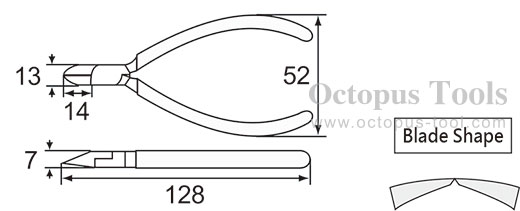

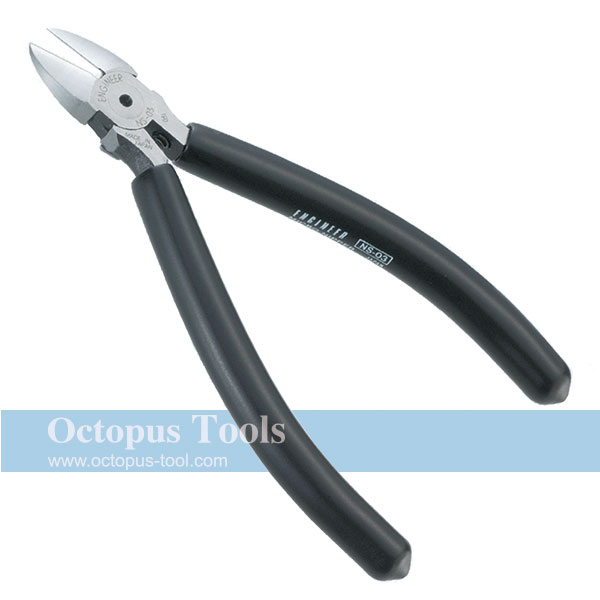

Micro Nippers 125mm NS-03

Micro Nippers NS-06 Engineer

[Specifications]:

Length: 112mm
Material: Blade - Carbon Steel / Handle - TPR
Hardness: HRC58±4
Cutting Capacity: Copper Wire φ0.8mm

[Features]:

◆ Ideal for small PCB related work.
◆ With opening angle adjuster.
◆ The coiled spring which is specially designed for professional users ensures comfortable user experiences.
◆ Heat-treated blades for excellent cutting capacity and durability.　

Chip Cutter NZ-03 Engineer

[Specifications]:

Length: 122mm
Weight: 64g
Material: Blades - Carbon Steel / Handle - TPR
Hardness: HRC58±4
Cutting Capacity: Copper Wire Φ 0.6mm

[Features]:

◆ Special and slender design of tip makes it ideal for cutting vertically especially for resistance or IC lead on dense circuit board.
◆ With one 1.5mm hex key wrench, you can adjust angle to Max. 5mm.
◆ ESD-safe handle made of thermoplastic elastomer featuring cushioned grip.
◆ Bring less fatigue when being used consecutively with spring design.
◆ Strap holes at grip-end enable this cutter link together with your key or personal items.

Chip Cutter NZ-05 Engineer

[Specifications]:

Length: 123mm
Weight: 67g
Material: Blades - Carbon Steel / Handle - TPR
Hardness: HRC58±4
Cutting Capacity: Copper Wire Φ 0.6mm

[Features]:

◆ Special and slender design of tip makes it ideal for cutting in 45 degree especially for resistance or IC lead on dense circuit board.
◆ With one 1.5mm hex key wrench, you can adjust angle to Max. 5mm.
◆ ESD-safe handle made of thermoplastic elastomer featuring cushioned grip.
◆ Bring less fatigue when being used consecutively with spring design.
◆ Strap holes at grip-end enable this cutter link together with your key or personal items.

Parallel Nippers Super-fine Normal Blade NZ-12

◆ Full flush and super-fine cutting edge
◆ Ideal fo cutting an IC lead of a narrow-pitch QFP or SOP with slender shears (0.3mm+0.3mm width at top)
◆ Ergonomic elastomer handle for comfort gripping
◆ Light weight, 45g only
◆ Enables you to make flush cut of a lead easily and prevents stripping or solder crack on the circuit board
◆ Unique structure of parallel handle for you to hold shears horizontally without raising up your elbow
◆ Overall Length: 125mm
◆ Grip Width: 50mm
◆ Jaw Width: 10mm
◆ Blade Length: 7mm
◆ Material: S55C
◆ Cutting Capacity: copper wire dia. 0.6mm

Parallel Nippers Super-fine Reverse Blade NZ-13

◆ Full flush and super-fine cutting edge
◆ Ideal fo cutting an IC lead of a narrow-pitch QFP or SOP with slender shears (0.3mm+0.3mm width at top)
◆ Ergonomic elastomer handle for comfort gripping
◆ Light weight, 45g only
◆ Enables you to make flush cut of a lead easily and prevents stripping or solder crack on the circuit board
◆ Reverse blade makes it possible to cut IC lead in front of user with the best view while holding nippers vertically against circuit board
◆ Overall Length: 125mm
◆ Grip Width: 50mm
◆ Jaw Width: 10mm
◆ Blade Length: 7mm
◆ Material: S55C
◆ Cutting Capacity: copper wire dia. 0.6mm

Diagonal Nippers 125mm NK-15

◆ Sharp and durable cutting for precision wiring work
◆ With opening angle adjuster
◆ With coiled spring
◆ Material: S55C
◆ Hardness: HRC 58±4
◆ Overall Length: 130mm
◆ Grip Width: 54mm
◆ Jaw Width: 15mm
◆ Jaw Thickness: 8mm
◆ Blade Length: 17mm
◆ Cutting Capacity: copper wire φ2.6mm

Slant Edge Nippers 150mm NN-56

◆ Sharp cutting and easy handling
◆ Material: S58C
◆ Hardness: HRC 58±4
◆ Overall Length: 159mm
◆ Grip Width: 51mm
◆ Jaw Width: 16mm
◆ Jaw Thickness: 11mm
◆ Blade Length: 26mm

Plastic Nippers 125mm NP-03

◆ Ideal for cutting plastic injection molded parts
◆ Overall Length: 125mm
◆ Grip Width: 54mm
◆ Jaw Width: 14mm
◆ Jaw Thickness: 8mm
◆ Blade Length: 17mm
◆ Material: High Carbon Steel
◆ Blade Hardness: HRC58 ± 4
◆ Cutting Capacity: Plastic φ3
◆ Weight: 80 g

Plastic Nippers 150mm NP-04

◆ Ideal for cutting plastic injection molded parts
◆ Overall Length: 150mm
◆ Grip Width: 55mm
◆ Jaw Width: 16mm
◆ Jaw Thickness: 10mm
◆ Blade Length: 20mm
◆ Material: High Carbon Steel
◆ Blade Hardness: HRC58 ± 4
◆ Cutting Capacity: Plastic φ3
◆ Weight: 120 g

Plastic Nippers NP-05 Engineer

[Specifications]:

Length: 123mm
Material: Blade - Carbon Steel / Handle - TPR
Hardness: HRC59±3
Cutting Capacity: Copper Wire - 0.8mm / Plastic - Dia.3mm

◆ Featuring tapered and slender head for work in restricted area.
◆ ESD-safe handles made of thermoplastic elastomer(TPR).
◆ Ideal for cutting and trimming on plastic parts and leads on circuit board.
◆ With coiled spring, specially designed for professional users.
◆ Holes in the end of the handles prevent pliers drop to the floor and can be used to link together with keychain.

Micro Nippers NS-04 Engineer

[Specifications]:

Length: 120mm
Material: Blade - Carbon Steel / Handle - TPR
Hardness: HRC58±4
Cutting Capacity: Copper Wire φ1.2mm

[Features]:

◆ Ideal for small PCB related work.
◆ With opening angle adjuster.
◆ The coiled spring which is specially designed for professional users ensures comfortable user experiences.
◆ Heat-treated blades for excellent cutting capacity and durability.
