HomePliers StrippersDiagonal Cutting Plier / Flush Cutter / PVC CutterOctopus KT-30 Flush Cutter 4-1/2", Angulated Head
Octopus KT-30 Flush Cutter 4-1/2
Octopus Brand:
Octopus

Octopus KT-30 Flush Cutter 4-1/2", Angulated Head

Product No
503.030
Country of Origin
Taiwan
International Barcode
4716044069922
Packing
(pcs) G.W. CU'FT
6/120 10.08KG 0.864'
inquiry
description

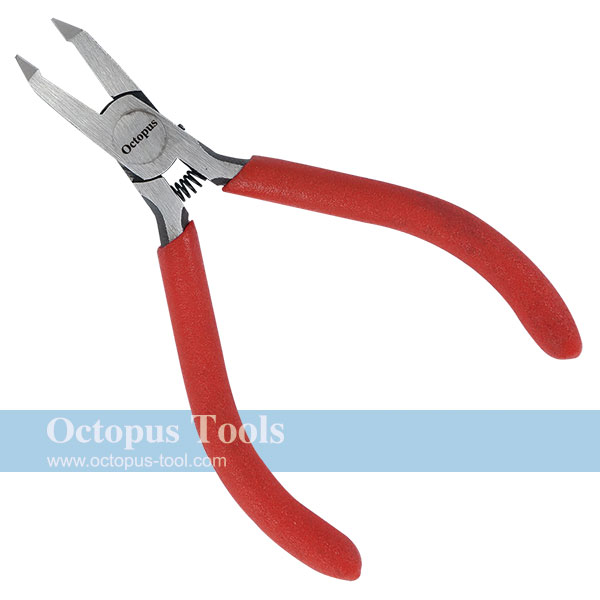

Octopus KT-30 Flush Cutter 4-1/2", Angulated Head

[Specifications]:

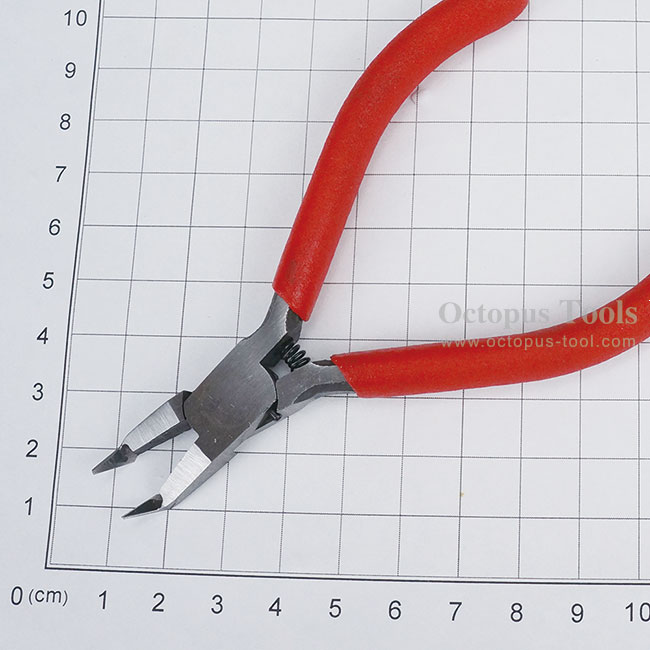

Length: 4-1/2"(120mm)
Blade Material: Carbon Steel
Handle: Foamed PVC
Hardness: Blade HRC 60±2
Cutting Capacity: Iron Wireφ0.8mm / Plasticφ2.0mm
Weight: 64g

[Features]:

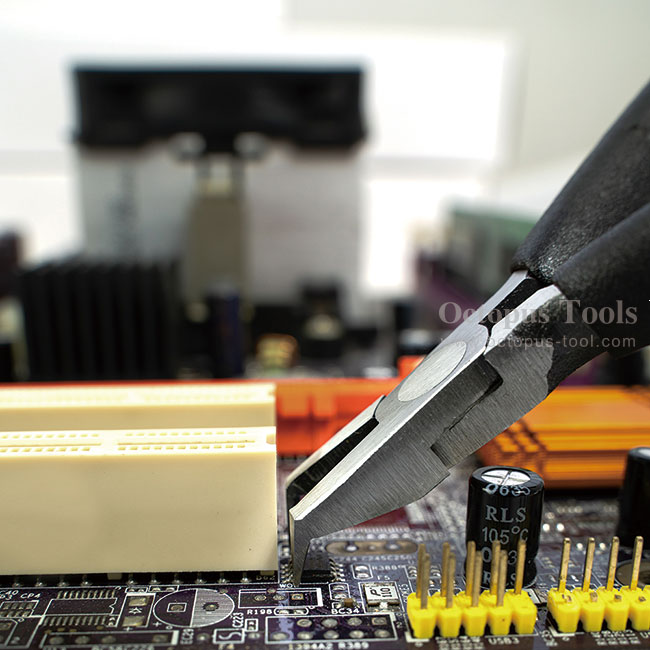

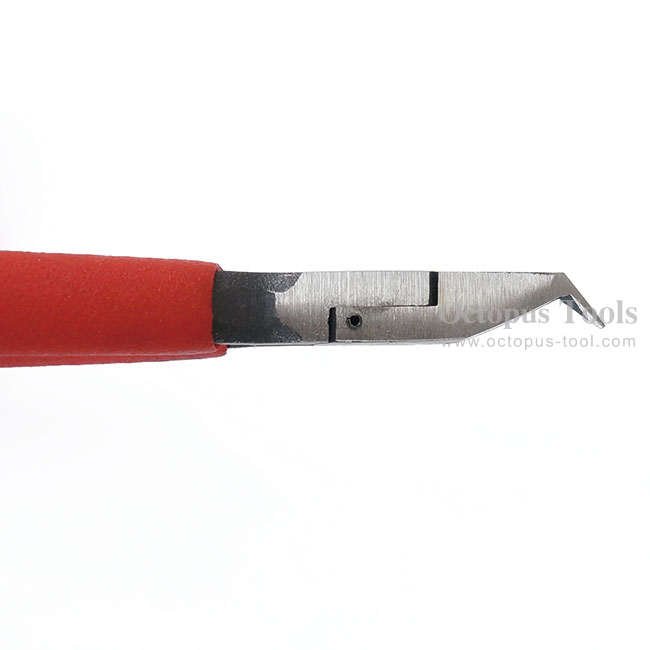

◆ Ideal for accessing to tight space on dense PCB with its specially-designed angulated tips.
◆ Great tool for cutting in plastic models without causing brittle plastic burrs.

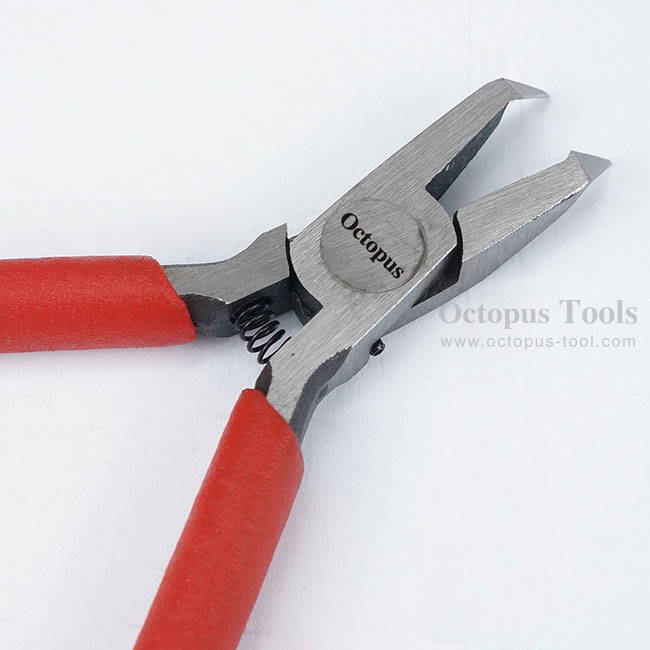

◆ With an integrated Opening Limiter (Stop Pin). This mechanism restricts the jaw opening angle to ensure consistent operation and reduce hand fatigue during repetitive work.
◆ Spring-loaded to prevent fatigue when in prolonged use.
◆ The blades are oiled to prevent rust.
◆ Oil-resistant foamed PVC (Cushion Grip).
◆ Drop forged and heat treated steel construction.










Octopus KT-30 Flush Cutter 4-1/2", Angulated Head
